Grinding System

Vibratory grinding machines / High Speed Centrifugal machines

Vibratory grinding systems, High speed centrifugal systems

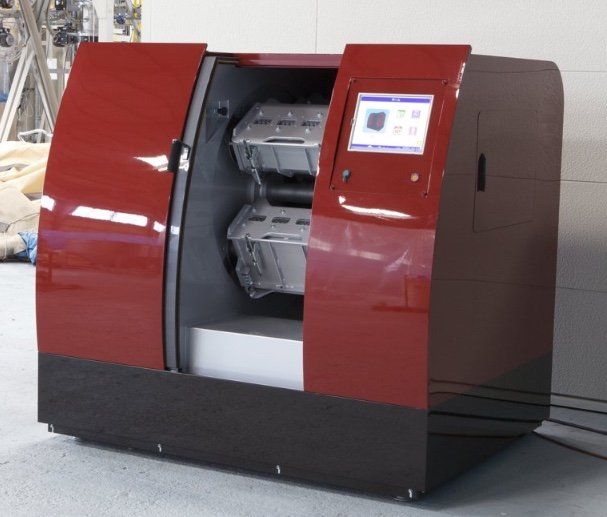

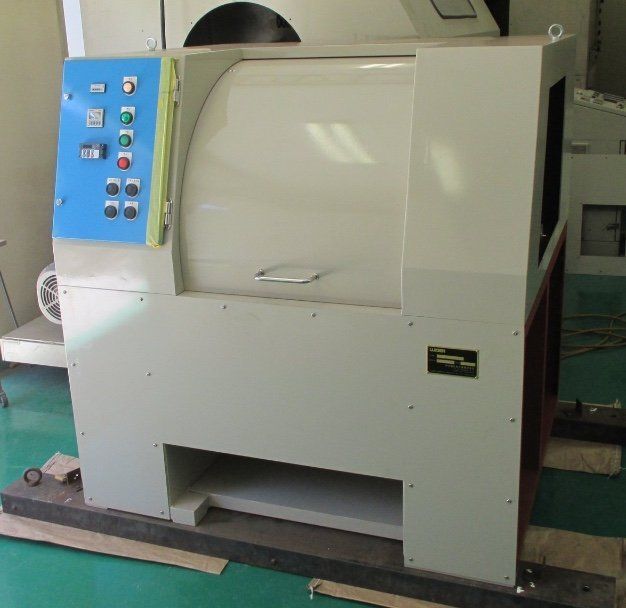

RDC/RDCB High Speed centrifugal systems for dry process

This series of systems is specially designed for dry use in all parameters. This series is particularly suitable for medium to large workpieces with smaller quantity

RCFB High Speed centrifugal systems for wet and dry processes

High speed centrifugal systems suitable for use in wet or dry processes. Particularly suitable for small to medium-sized parts with high quantities.

RLC High Speed centrifugal systems for the wet process

Our RLC series is tailor-made for your application and the parts to be grinded. This series is manufactured for the wet process and is particularly suitable for large and complex workpieces.

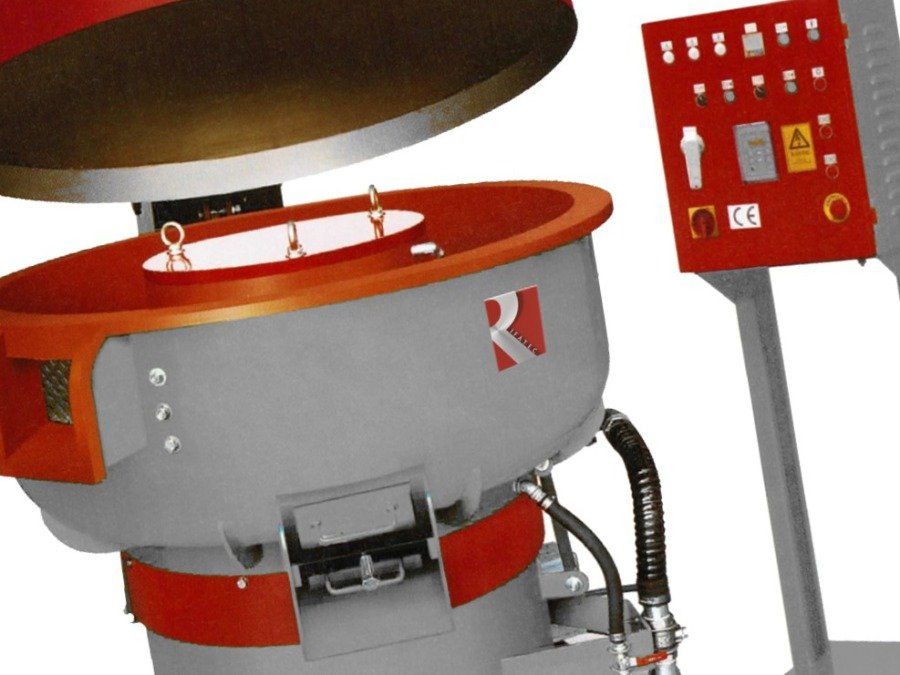

Trough vibratory grinding machines, dryers

Under "trovalisieren" refers to well-known Trough vibratory systems and the corresponding dryers.

Polishing of musical instruments and clocks

Musical Instruments & Watch Industry

cleaning and grinding up to high-gloss polishing

Medical Industry

grinding, cleaning, polishing of for example medical tools, implants, hip & knee joints

Automotive

deburring, rounding edges, cleaning, polishing

Vibratory finishing for the manufacturing industry

Producing industry

grinding, smoothing, rounding edges, deburring, polishing

For which process type are the High Speed Centrifugal Units suitable?

Our centrifugal machines can be built for application in the dry - as well as in the wet process.
How are the systems equipped?

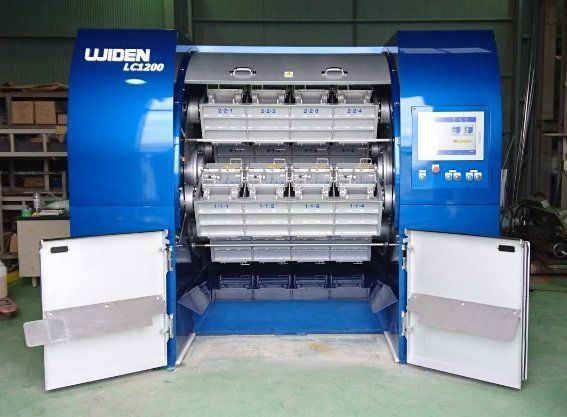

The high speed centrifugal machines have 4 pots. If required, each container can be equipped with different medias/chips as well as with different workpieces. This makes it possible to perform different cycles in one system.
Can workpiece damage caused by the process be ruled out?

The number of workpieces that can be processed in a pot is determined by the pot size and the ratio between chips/medias and workpieces.
Which surfaces can be achieved?

The application spectrum ranges from strong grinding, deburring, surface finishing to high-gloss polishing with a roughness value of RA 0.01 μm.
A short summary of the special features of high-speed centrifugal systems
- short running time per cycle ( 30-90 minutes )
- Use of different medias in one system
- Can be designed for both dry and wet processes
- Special systems can prevent workpiece damage during the process
- Different workpieces can be processed in one machine
- Wide range of applications
- Surfaces down to RA 0. 01µm can be achieved

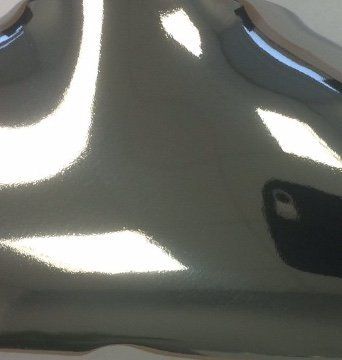

Before After

Before After

Before After

Before After

High speed centrifugal vibratory finishing machines offer an alternative to drag finishing or surffinishing machines.

Our High Speed Centrifugal Systems can be used in wet and dry process, from aggressive cutting to super finishing (up to RA 0.001micron). Thanks to the combination of many standard sizes and variety of special designs with trailor-made construction and technology, makes processsing of both, small to very large workpieces possible. Small to medium size batches as well as large batches can be processed economically in running times of 30 - 90 minutes, by its ultra high G-force, generated by special DC/CF centrifugal drive unit with run up to 400rpm.

For deburring, polishing, grinding, smoothing, for even delicate and complex workpieces, soft to hard materials, the workpieces are inserted in one of the Barrel. The Zero-tolerance in risk of part damage is done by divider-unit for small to medium size workpieces and Tailor-made Jig-fixture for large to very large workpieces.

The process reliability is achieved by sensor-controlled monitoring of the barrel interior.

Each barrel can be equipped with different grinding and polishing media and compound. As a result, workpieces can be finished in different processing stages in one system.

Compared to classical barrel systems, the cycle time can be reduced by 20-50 times.

Benefits:

Very short cycle times

Constant, homogenous, reproducible results, up to high gloss finish

Dry and wet process

Suitable for small batches, as also for a wide range of parts

Suitable for small, very large or light parts

In addition to our high-speed centrifugal systems, we also distribute classical round and tube vibratory finishing systems as well as dryers and separators.

Let us convince you and send us your sample parts for a test processing. We are looking forward to your contact.
