Robust Blasting Systems – Precision & Quality

Blasting Machines

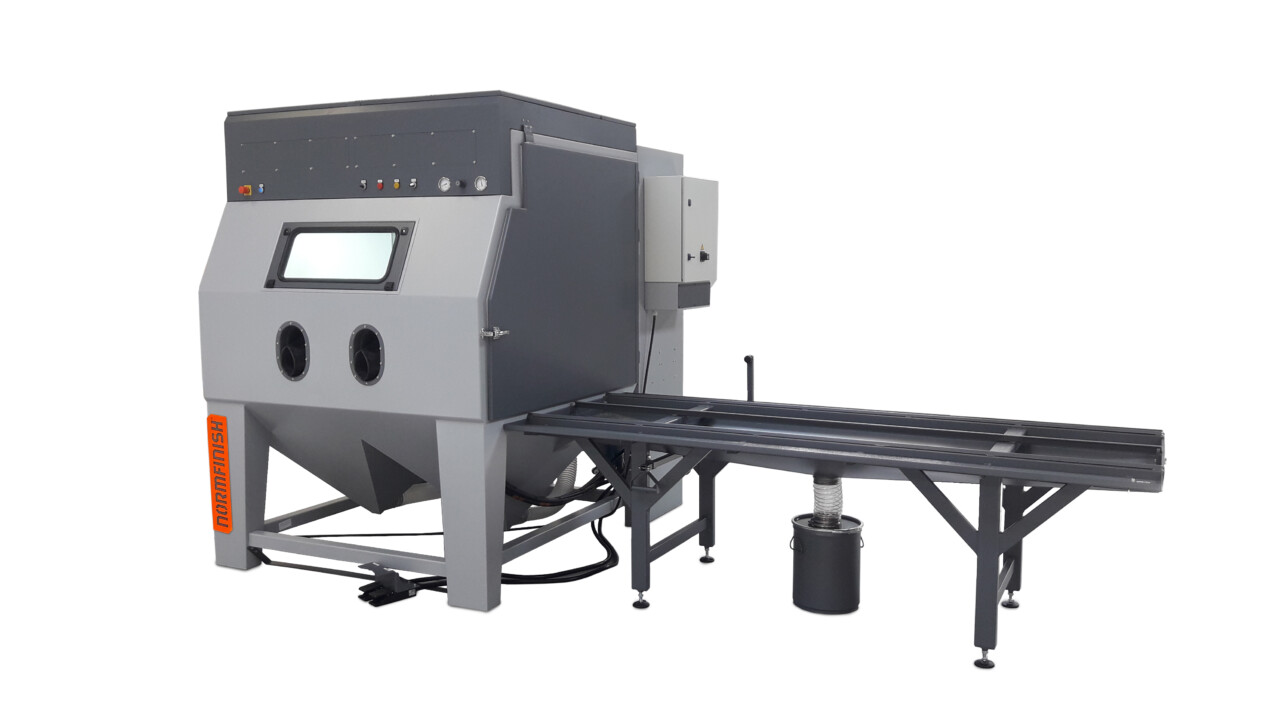

DI-Injection-Blasting Cabinets

---

Our blast cabinets are designed for industrial use, for frequent blasters with high demands on surface quality. Our blast cabinets are characterized by user-friendliness and safety.

Our injection blasting cabinets are equipped with a cyclone for blasting media cleaning and a filter unit. We offer these in two standard sizes: with a working chamber of ​​(W x D x H) 1105 x 800 x 800 mm or 1370 x 940 x 830 mm.

Both injector blasting cabinets are equipped with side doors with locking mechanisms, comfortable glove openings, LED lighting and a generous viewing window in quick-change frame, blasting media dosing, filter sieve and control panel on the front of the blasting cabinets.

Additional accessories such as turntables or rotating baskets, loading platforms, door openings and for example, HEPA filters complement our blasting cabinets and the working comfort.

Do you have any questions, requires or would you like to get a quote? We look forward to your request.

Blasting Machines

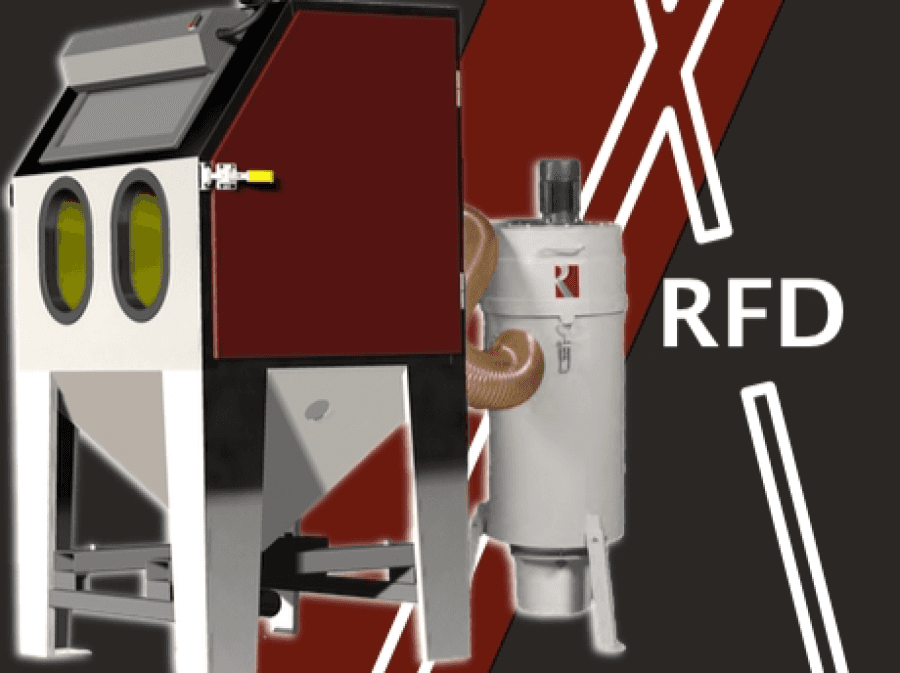

DP Pressure Blasting Cabinets

---

Our pressure blasting cabinets with PLC are also equipped with a cyclone and a filter unit. The pressure blasting vessel is mounted below the cyclone, which features a quick blasting media emptying system and a maintenance unit.

There are 4 standard sizes available with a

Working chamber of (W x D x H):

1170 x 940 x 885 mm

1370 x 1040 x 940 mm

1700 x 1400 x 1090 mm

2200 x 1400 x 1090 mm

In addition to identical accessories as for the injection blasting cabinets, we offer the option of protecting the pressure blasting cabinets according to Atex .

Do you have any questions, requires or would you like to get a quote? We look forward to your request.

Blasting Machines

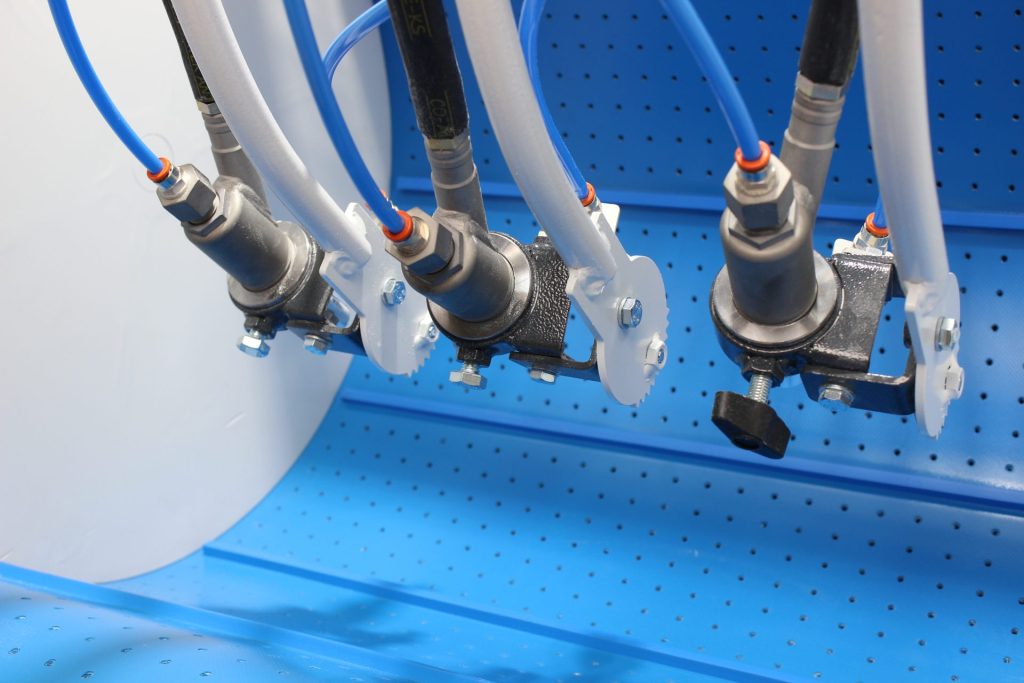

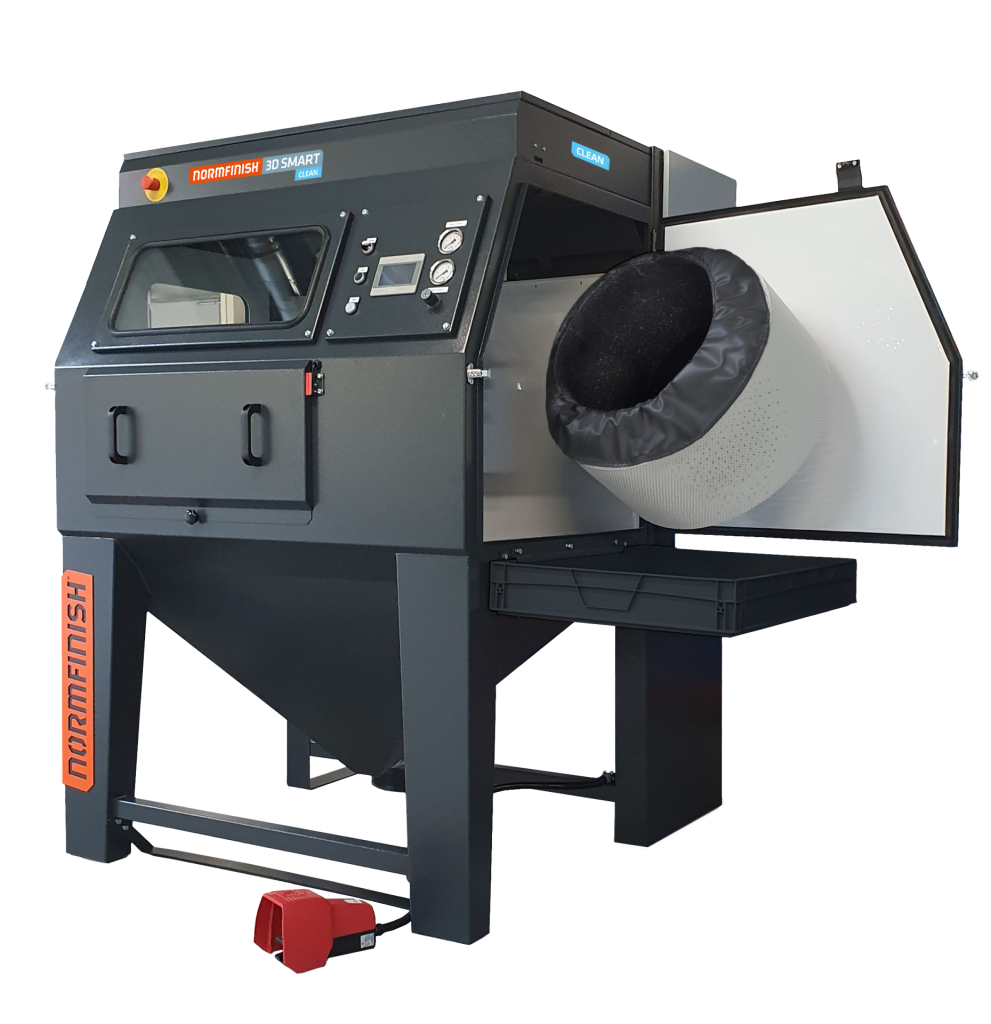

Blasting Cabinets for 3D printed parts

---

The blasting cabinets, named DI 3D, Solid, Smart, Excel, and Samba, are specifically designed for processing 3D-printed components. Depending on the model, they are equipped with a rotating basket and an ionization unit, and are available as manual blast cabinets and semi- or fully automated.

All cabinets designed specifically for the 3D process and are explosion-proof according to Atex.

We are pleased to send our detailed brochure on request.

Do you have any questions, requires or would you like to get a quote? We look forward to your request.

Blasting Machines

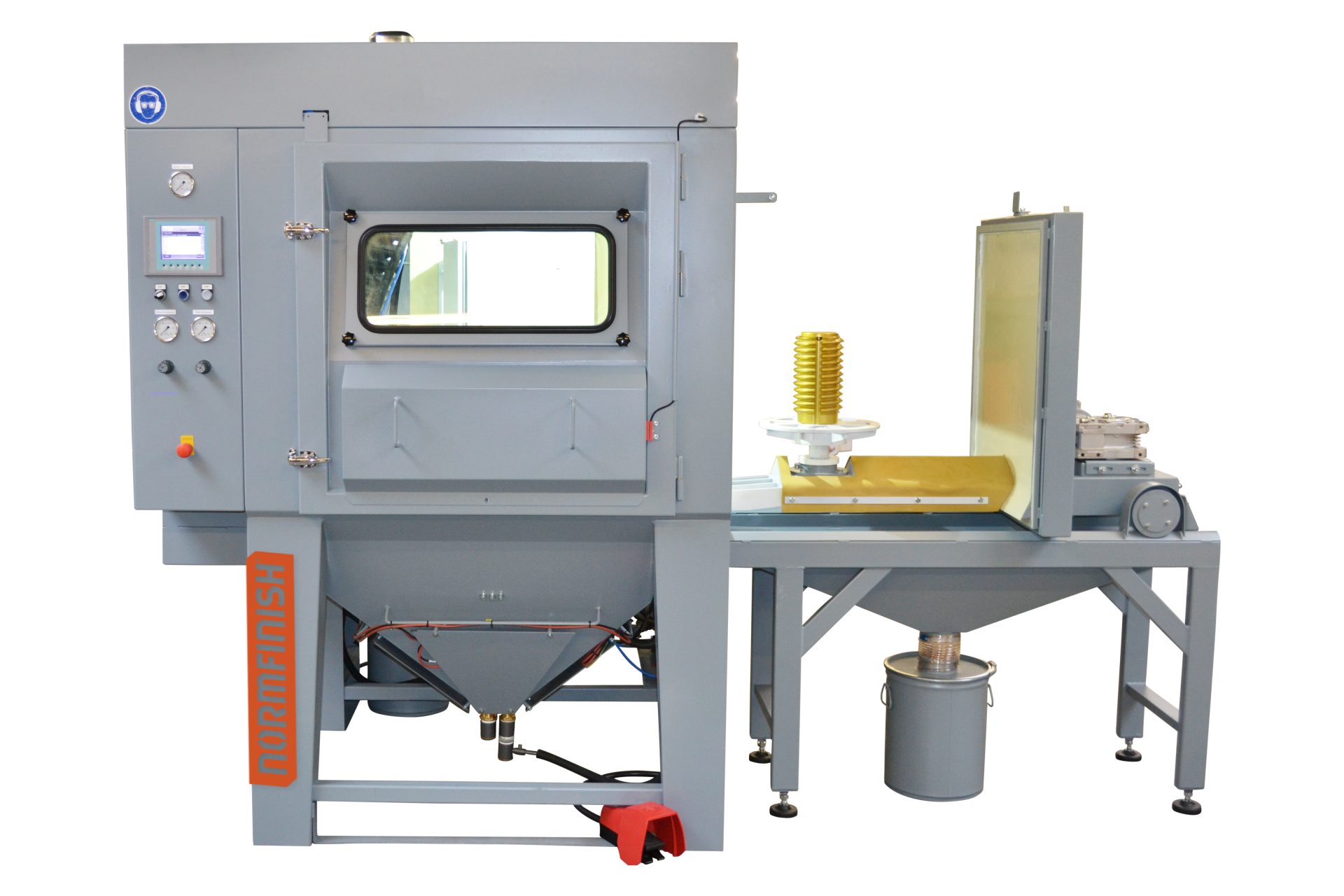

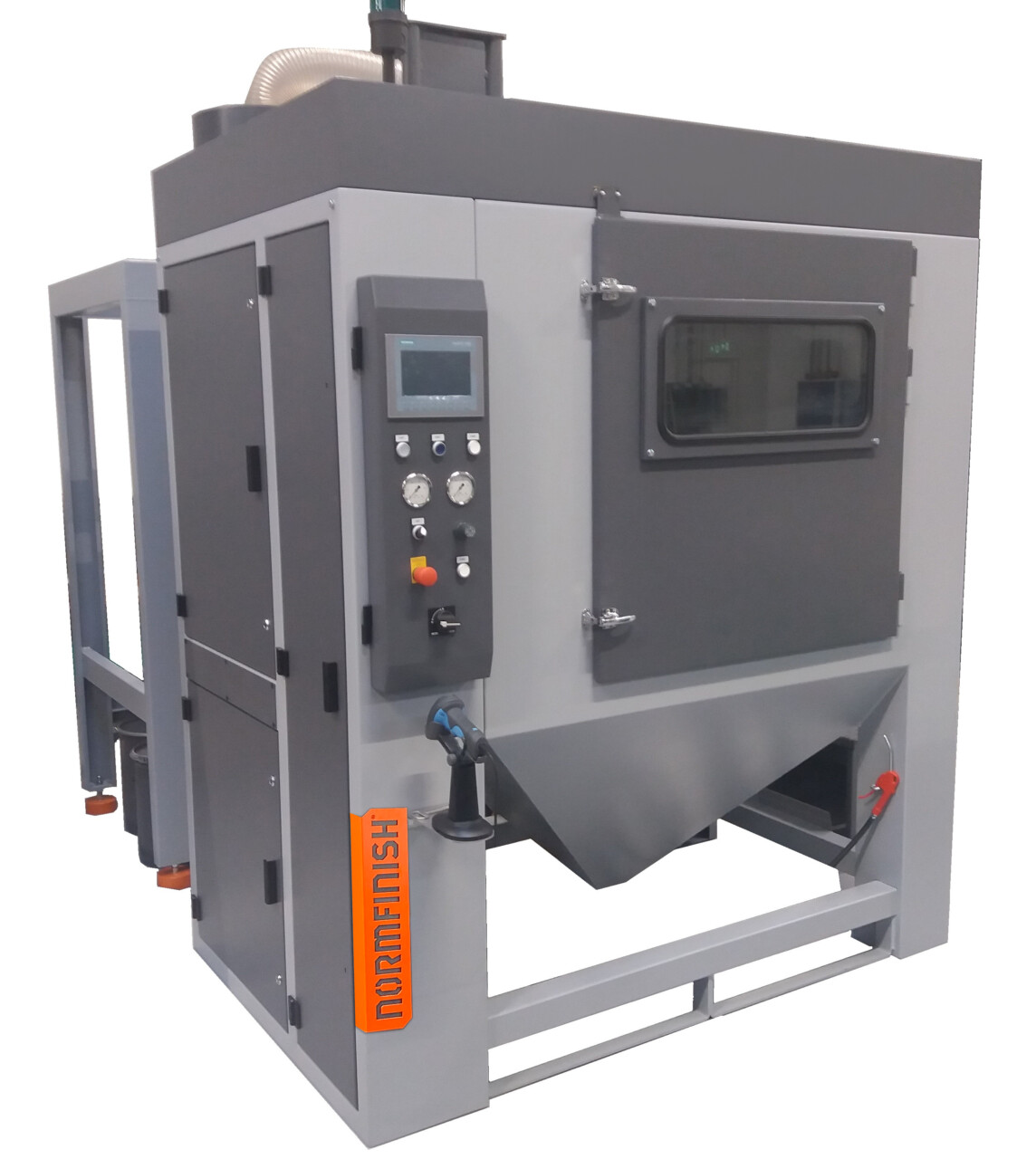

Satellite Blasting Machine

---

Automated – Your workpieces are mounted on individual satellites and after blasting, processed fully automatically in cycles. These systems are precisely tailored to your workpieces. Is one blasting nozzle sufficient, or do you need two or more? Is the horizontal movement of the satellites sufficient, or do the blasting nozzles also need to be moved vertically?

To process the needed number of workpieces, do you need one, two, six, eight, or even more satellites? We are pleased to offer blasting tests on your workpieces so that we can then offer you a suitable automatic blasting system.

Do you have any questions, requires or would you like to get a quote? We look forward to your request.

Blasting Machines

Tumler Belt Blasting Machine

---

A tumbler belt blasting system with compressed air? It works!

Tumler belt systems are well-known in the field of wheel shot blasting systems. However, using tumbler belt blasting machines with compressed air can also be very interesting for example, with large quantities, workpieces with different sizes, or complex designs that require all-round processing, such as deburring.

By using compressed air and one or more blasting nozzles, the blasting process, blasting area, and blasting pattern can be precisely controlled. This allows good results to be achieved even with very light blasting media.

Do you have any questions, requires or would you like to get a quote? We look forward to your request.

Blasting Machines

Custom Automated Blasting Systems

---

Whether it’s a continuous-feed blasting system, a rotary table blasting system, a satellite blasting system, a rotating basket blasting system, a roller, pipe, or screw blasting system, a blasting system for processing interior areas such as plunge cylinders, or a robot-assisted blasting system – our system engineering department can implement a wide range of options. We are pleased to discuss and test the right option for you in detail.

Do you have any questions, requires or would you like to get a quote? We look forward to your request.

Blasting Machines

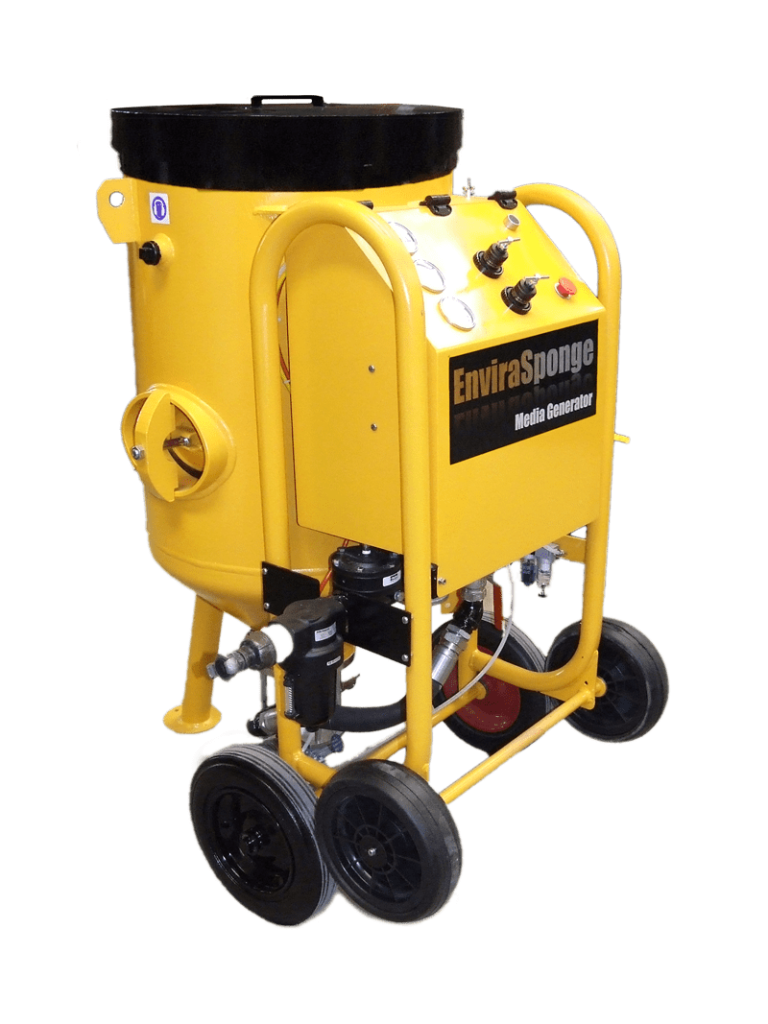

Envira Sponge Blasting Machine

---

Dust Free blasting process

Our MG100, MG200 and MG500 blasting machines are designed for dry, low-dust, durable and recyclable sponge blasting media.

Applications include:

• Removal of industrial coatings, bridge renovation, blasting work on offshore platforms, decoating of rail vehicles, work on petrochemical plants, blasting work in the military sector, e.g. tank decoating

• Cleaning & repair of machines, removal of fire damages,

 Building renovation

• Removal of surface contaminants – lead, asbestos, PCBs or graffiti with appropriate permits if necessary.

• Nuclear energy decontamination using blasting processes

All devices can be equipped with nozzle sizes from 9.5 mm to 15 mm bore.

The integrated pressure regulator enables processing with a blasting pressure of 1 bar to 8 bar.

Do you have any questions, requires or would you like to get a quote? We look forward to your request.

Blasting Machines

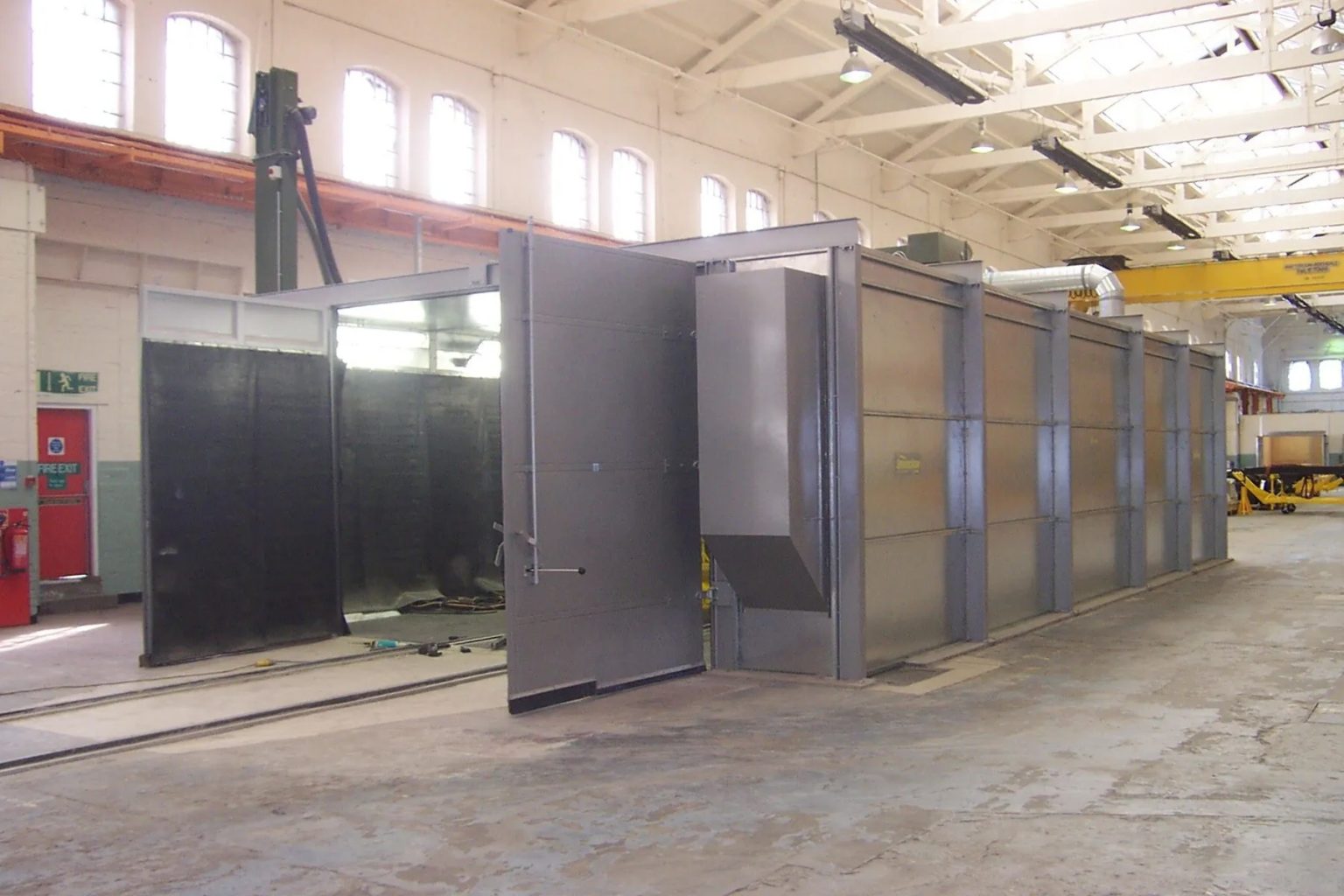

Blasting Rooms

---

Our customized blast room systems are suitable for indoor and outdoor use and can be selected as a portable and weather-resistant container blast room, a soundproof cabin, or a modular steel panel blast room.

The blasting rooms are individually tailored to your needs and intended use and are equipped with a filter system, a blasting media recovery system, doors with safety locks, and an emergency access door.

Optionally, we equip the blasting rooms with a slide door, wear protection in the cabin, a scraper floor, a rail system for loading and unloading, or a crane space.

As an alternative to conventional blasting machines in various sizes, our Envira Sponge System can be integrated into the blasting room.

Do you have any questions, requires or would you like to get a quote? We look forward to your request.
